Monotrade
Membrane Roof Sandwich Panels

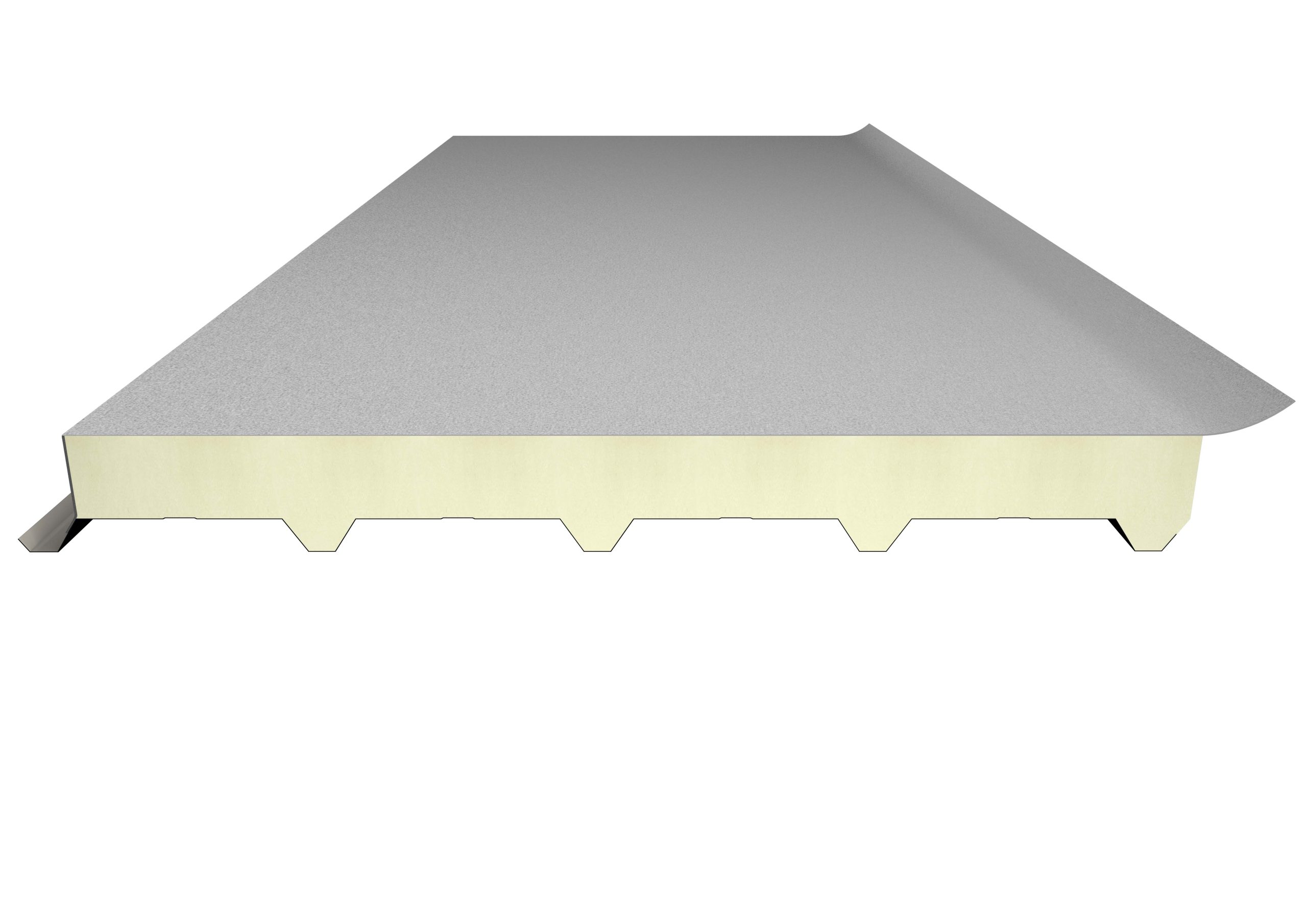

A10401_1
Product Feature
  • 5 ribs profiled inner sheet
  • Inner sheet is Pre-painted galvanized steel, outer sheet is PVC Membrane
  • Production in various colour options
  • Application of flat roofs and roofs with a slope lower than 5%
  • Fire performance according to TS EN 13501-1B-s2; d0 for PUR insulated roof panels, B-s1; d0 for PIR insulated roof panels
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
  • According to TS EN 14509, U values range between 0,49 – 0,11 W/m2K depending on the panel thickness
  • PVC Membrane thickness options 1,20 mm or 1,50 mm
  • Mineral Wool insulation alternative besides PUR and PIR insulation
A10401_3
A10401_2
Physical Data
p5ms_physical data

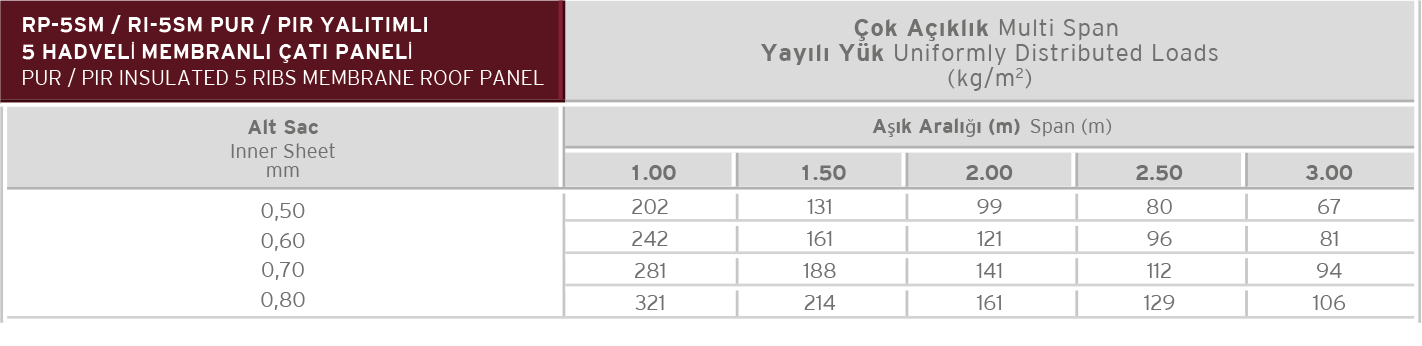

Load Data
p5ms_load table
A10402_1
Product Feature
  • 5 ribs profiled inner sheet
  • Inner sheet is Pre-painted galvanized steel, outer sheet is galvanized sheet coated with PVC or TPO Membrane
  • Production in various colour options
  • Application of flat roofs and roofs with a slope lower than 5%
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options 40-50-60-70-75-80-100-120-150-180-200 mm
  • Mineral Wool insulation alternative besides PUR and PIR insulation

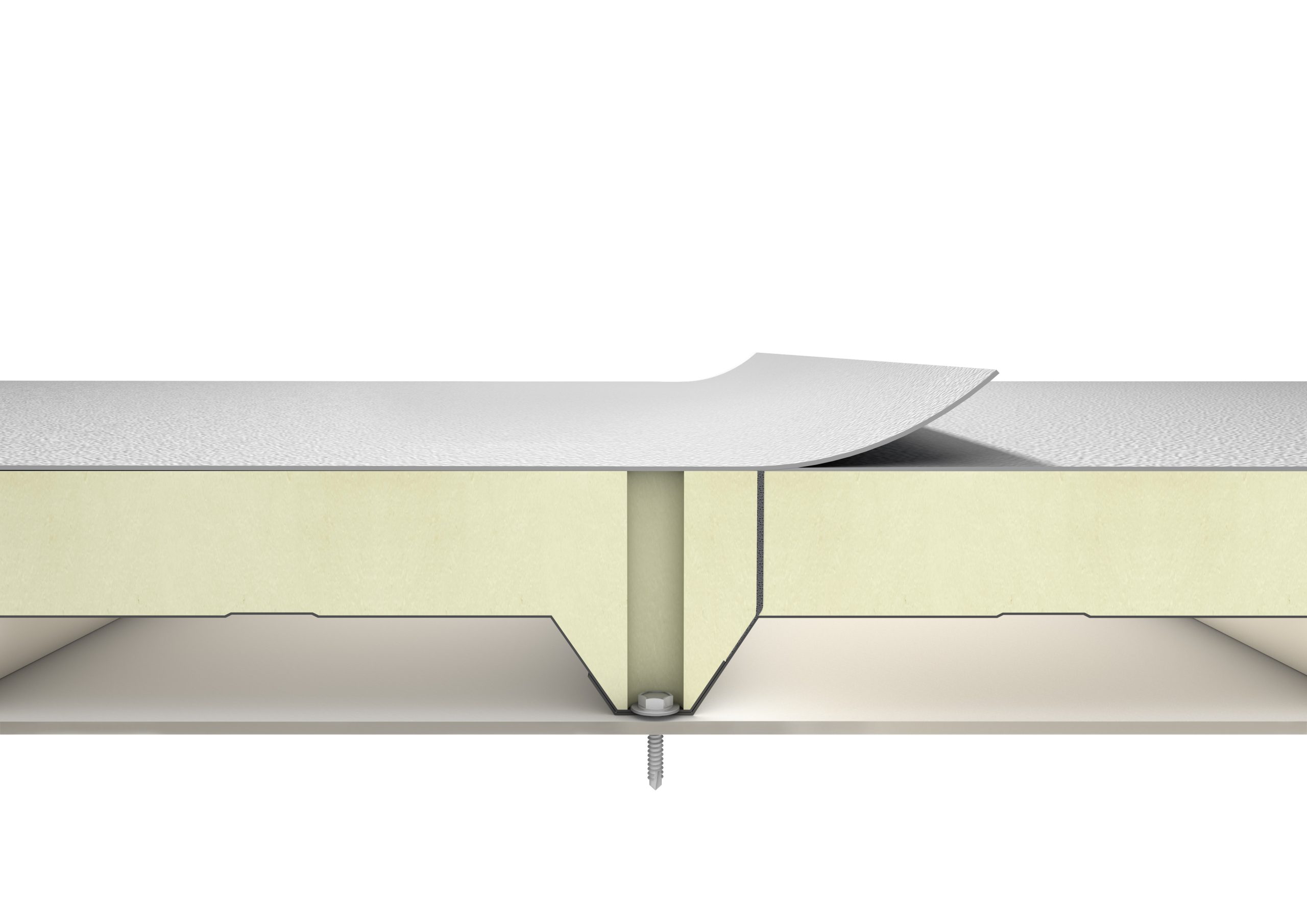

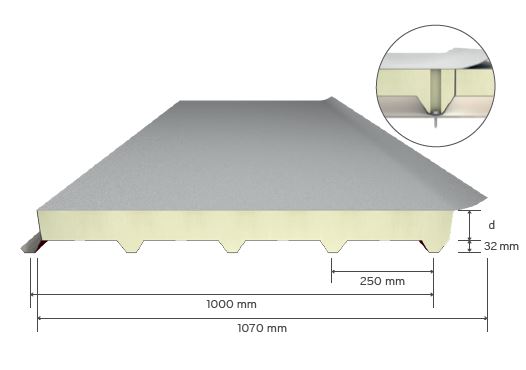

A10402_3
A10402_2
Physical Data
p5ms_physical data

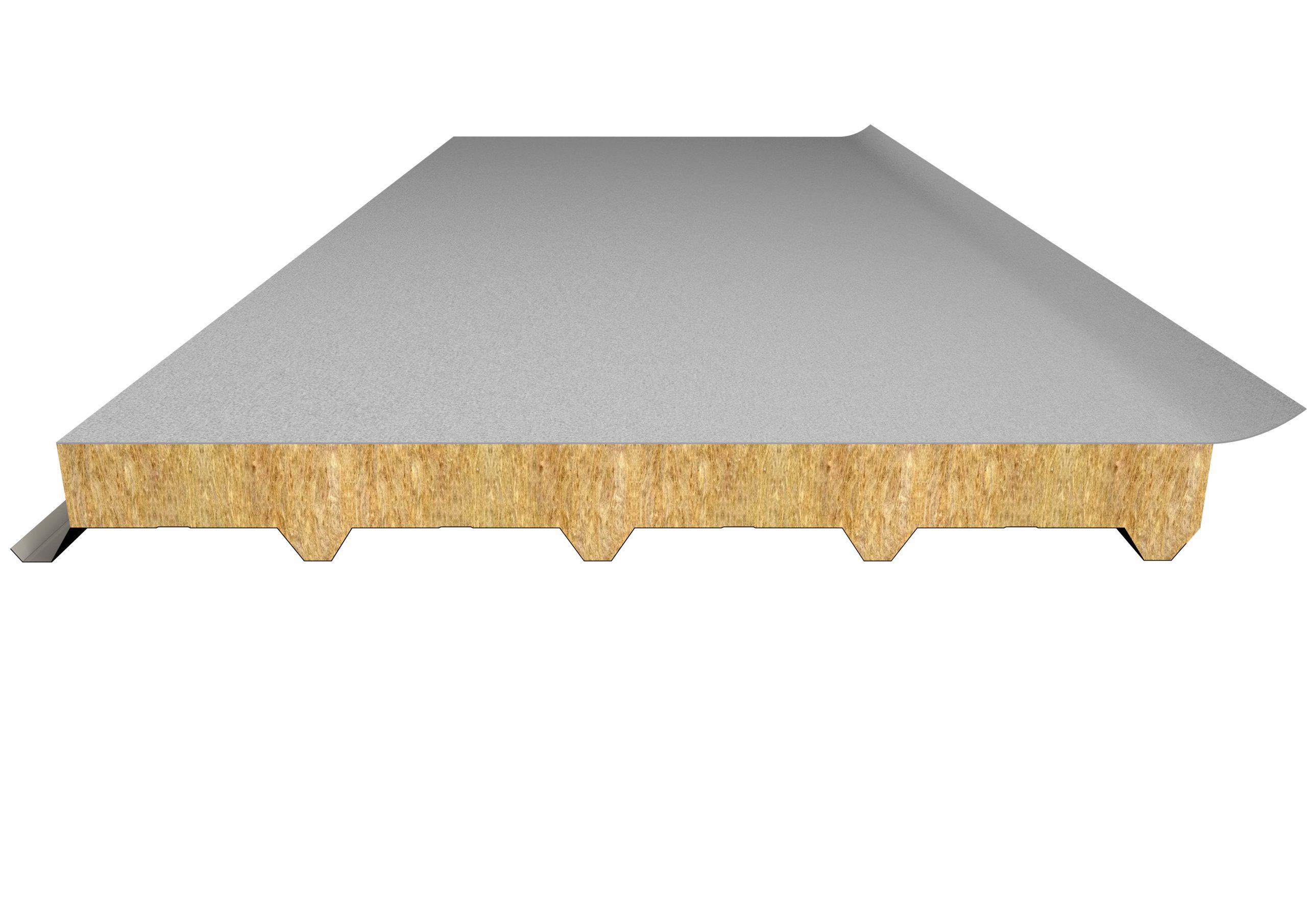

A10403_1
Product Feature
  • 5 ribs profiled inner sheet
  • Inner sheet is Pre-painted galvanized steel, outer sheet is PVC Membrane
  • Production in various colour options
  • Usage in buildings that require fire safety
  • Application of terrace roofs and roofs with a slope lower than 5%
  • Fire performance according to TS EN 13501-1,B-s1; d0 for Rock Wool insulated roof panels
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options 50-60-80-100-120-150 mm
  • According to TS EN 14509, U values range between 0,62 – 0,23 W/m2K depending on the panel thickness
  • PVC Membrane thickness options 1,20 mm or 1,50 mm
  • PUR and PIR insulation alternatives besides Rock Wool insulation

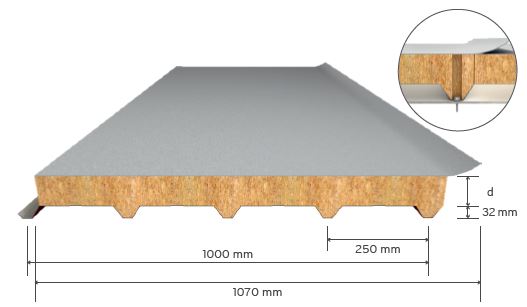

A10403_3

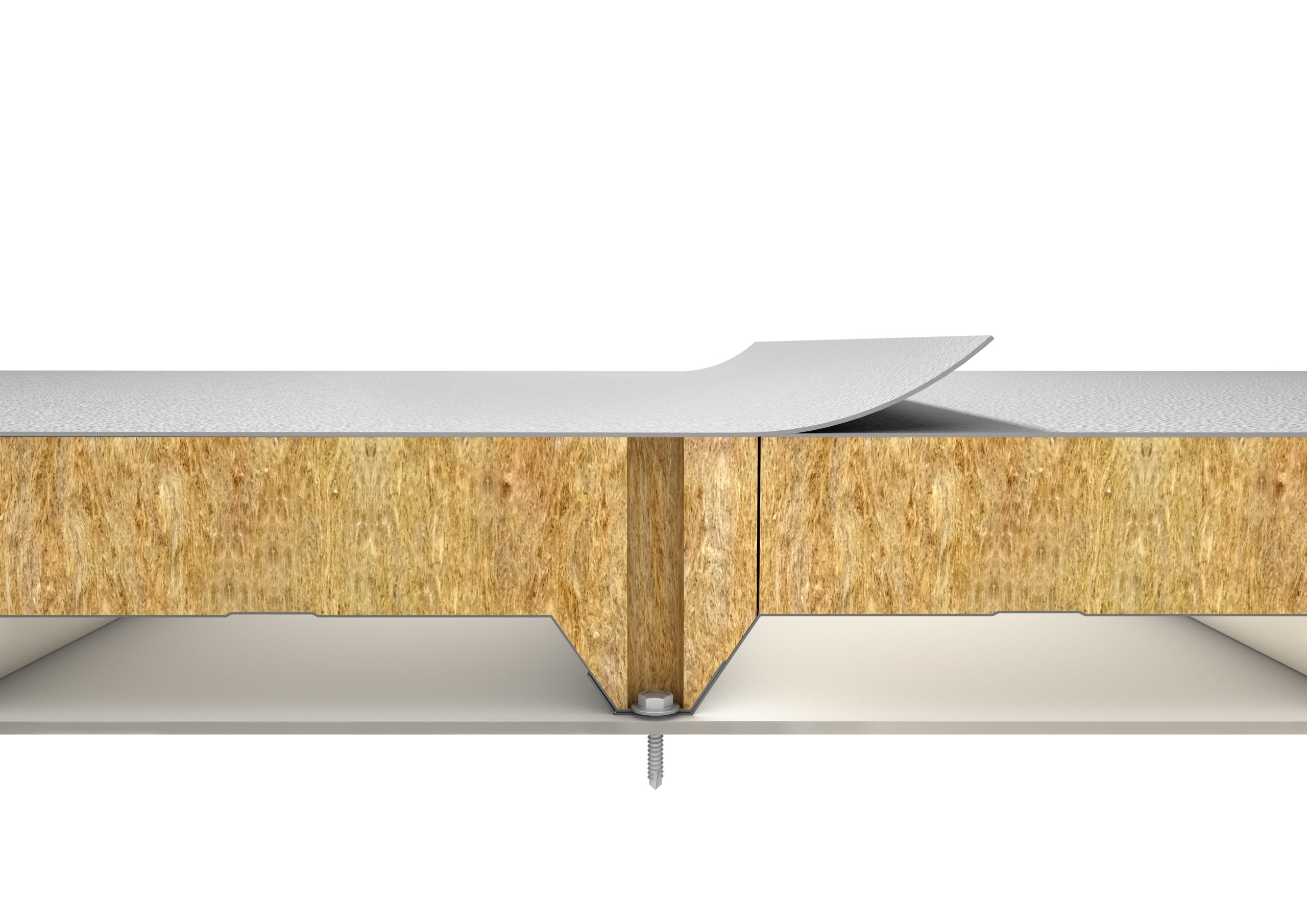

A10403_2
Physical Data
r5ms_physical data
Load Data
p5ms_load table
A10404_1
Product Feature
  • 5 ribs profiled inner sheet
  • Inner sheet is Pre-painted galvanized steel, outer sheet is galvanized steel coated with PVC or TPO Membrane
  • Production in various colour options
  • Usage in buildings that require fire safety
  • Application of terrace roofs and roofs with a slope lower than 5%
  • Production flexibility at any ordered length between 2 m - 12 m
  • Core thickness options 50-60-80-100-120-150 mm
  • PVC or TPO membrane thickness options 1,20 mm-1,50 mm-2,00 mm
  • PUR and PIR insulation alternatives besides Rock Wool insulation
A10404_3
A10404_2
Physical Data
r5ms_physical data
