ACOUSTIC SANDWICH PANELS

Enhance your building's roof, walls, interior walls, and ceilings with our versatile sandwich panels featuring acoustic properties. The perforated inner surfaces, designed to be vapor permeable, make these acoustic panels suitable for various applications, even in humid environments within heated buildings.

Product Feature
  • 5 ribs profiled outer sheet
  • Outer sheet is pre-painted galvanized steel, inner sheet is perforated pre-painted galvanized steel
  • Production in various colour options
  • Usage for sound insulation and acoustic improvement
  • Application on roofs with a slope higher than 5%
  • Fire performance according to TS EN 13501-1,A2-s1; d0 for Rock Wool insulated Acoustic Roof Panels
  • Production flexibility at any ordered length between 2 m - 10 m
  • Core thickness options 50-60-80-100-120-150 mm
  • According to TS EN 14509, U values range between 0,77 – 0,23 W/m2K depending on the panel thickness

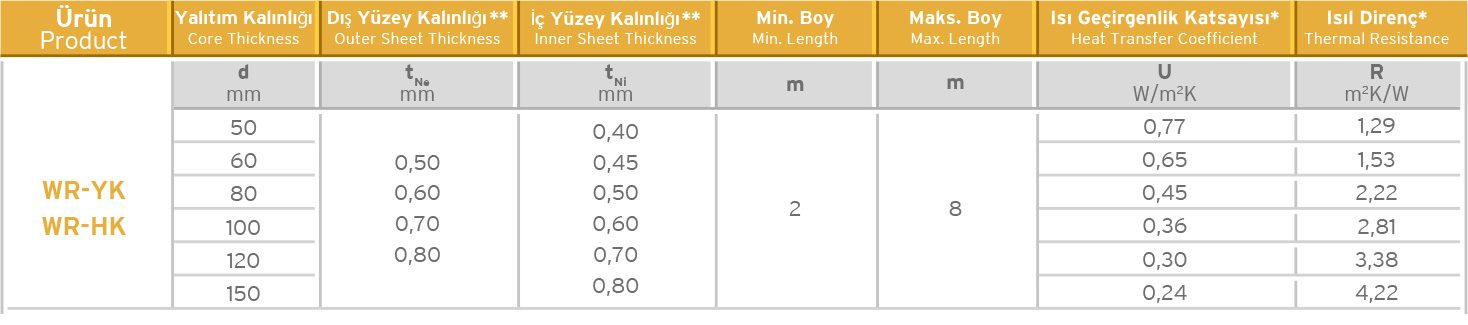

Physical Data

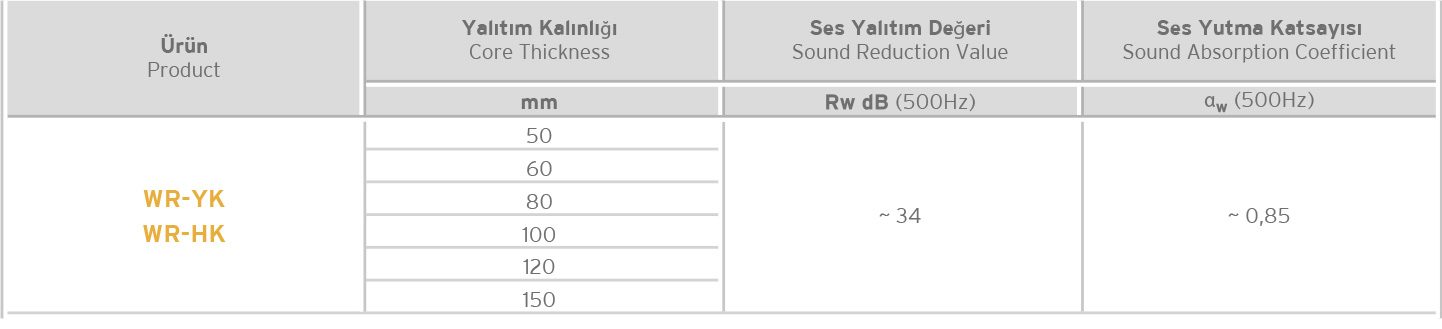

Performance Data
Product Feature
  • Lined type outer sheet
  • Outer sheet is pre-painted galvanized steel, inner sheet is perforated pre-painted galvanized steel
  • Both vertical and horizontal cladding
  • External fixing joint detail
  • Usage for sound insulation and acoustic improvement
  • Fire performance according to TS EN 13501-1,A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels
  • Production flexibility at any ordered length between 2 m - 8 m
  • Core thickness options 50-60-80-100-120-150 mm
  • According to TS EN 14509, U values range between 0,70 – 0,24 W/m2K depending on the panel thickness
Physical Table:
Performance Table:
Product Feature
  • Lined type outer sheet
  • Outer sheet is pre-painted galvanized steel, inner sheet is perforated pre-painted galvanized steel
  • Both vertical and horizontal cladding
  • Secret fixing joint detail
  • Usage for sound insulation and acoustic improvement
  • Fire performance according to TS EN 13501-1,A2-s1; d0 for Rock Wool insulated Acoustic Wall Panels
  • Production flexibility at any ordered length between 2 m - 8 m
  • Core thickness options 50-60-80-100-120-150 mm
  • According to TS EN 14509, U values range between 0,77 – 0,24 W/m2K depending on the panel thickness
Physical Data:
Performance Table:
